Fully-automatic sealing machine VFL-1F

vertical operationtransportfor glass

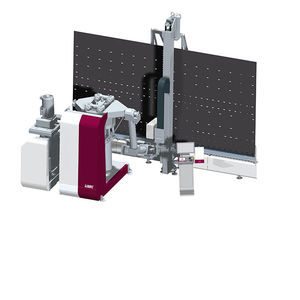

The LiSEC VFL-1F is a system for sealing insulating glass units with two-component sealants. The perfected build-up of this system guarantees a high degree of process reliability and top corner quality - even for units with a high weight. How is the VFL-1F configured? The VFL-1F consists of an infeed section, a vertical sealing bar and an outlet section. Glass transport is realised by means of a "full support belt system". This innovative toothed belt drive cleans the support jaws with every pass, whilst the support jaws can be changed without difficulty. From the outlet zone, an additional horizontal roller beam with a defined distance to the back wall guides the unit at the upper edge. How does the automatic sealing of insulating glass units work? Unit thickness and build-up are measured in the separate upstream measuring section or via an ERP system and are therefore known at the in-feed into the sealing machine. The unit length measurement takes place during in-feed transport. The material is applied with the help of a rotatable application head, which realises the frame inset measurement and detects this automatically. Automatic corner correction is subsequently carried out and ensures rapid and high-quality sealing results. Who is the VFL-1F suitable for? The innovative and fully automatic sealing machine guarantees top quality sealing of the insulating glass unit. Thanks to the extremely stable design, the system can also handle heavy façade elements without difficulty. The use of numerous high-quality components facilitates maximum system availability and reduces operating and maintenance costs.
