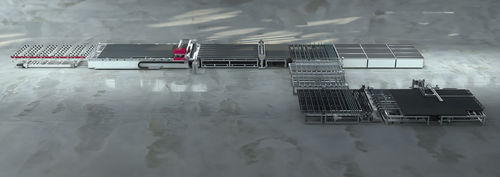

Breaking cutting line ARS-TBX/Y/Z

knifefor glassturning

The LiSEC float glass breakout system automatically breaks all XYZ sub-plates in the optimisation, edge and residual fractures at the front and rear, as well as the side trim cuts continuously, quickly and with consistently high breaking edge quality. Thanks to the optionally available electric design of the breaker heads, individual process parameters are possible for each glass type and thickness to deliver even better breakage results for optimum precision and grind additions! Any Z-breakage shapes are broken out on a downstream manual breakout table and fed back into the line. An automatic turning unit ensures the correct position of the finished sheets before they are either removed manually or fed to a robot unloading system or sorting buffer. HOW IS THE LINE LAID OUT FOR THE AUTOMATIC BREAK-OUT OF X SUB-PLATES? ARS: X-trim cut front and rear TBX: Break-out of X-cuts TCY-A: Y-trim cut front and rear TBY: Break-out of Y-cuts TBZ: Break-out of Z-cuts RBA-SZ: Z trim cut, rear BTA-A SDE: Glass rotating device for correct positioning during in-feed into a sorting system System operator: Monitors the system and empties the container for broken glass and, if necessary, breaks out shapes. WHAT ADVANTAGES DOES THIS LINE DELIVER? Output of up to 240 sheets per hour Increase in the degree of automation à No manual breaking out of rectangular sheets is necessary Higher edge quality thanks to pneumatically or optionally electronically controlled breaker heads Prevention of sheet breakage and grind addition savings No contact with the coated glass surface
