Articulated robot RHH-A

sortingloadingunloading

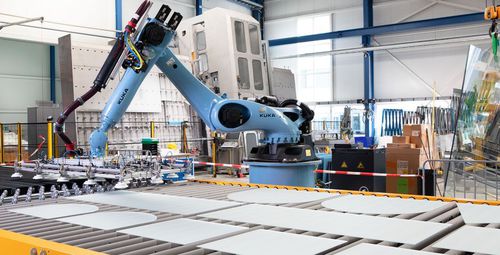

The very compact tempering bed loading and unloading by RHH robot system, with its lightweight modular clamp, and the GPS.autofab responsible for the logic, can adapt to almost any products, ensuring a stable and continuous process. How is the robot bed loading configured? The RHH robot system consists of a robot and a clamp, in conjunction with a comprehensive software package that calculates the required suction cups and the best position of the sheet in the tempering bed. How does the robot bed loading work? The sheets are pre-sorted in the sorting/buffer station (ASM) and then transported to the take-off position via a belt section. GPS.autofab calculates the required suction cups and the storage position. The robot lowers the required suction cups on the clamp and activates the vacuum. This procedure enables dense occupancy, handling of sheets with cut-outs, as well as a reduction of suction cup marks. The robot picks up the sheet with low-pressure suction cups and places it in the calculated position directly at the tempering oven inlet. Who is robot bed loading suitable for? Automatic tempering bed handling is ideal for existing customers with sorting systems, and also for series production. Skilled employees can be deployed more effectively, because only one worker is required at the oven. What advantages does the machine offer? The continuous feeding of the tempering oven facilitates optimum utilisation. It also ensures production of consistent quality around the clock, because sheet occupancy always takes place according to the same algorithm. What functions are included as standard? ■ Robot with traversing axis ■ Aluminium suction grippers
