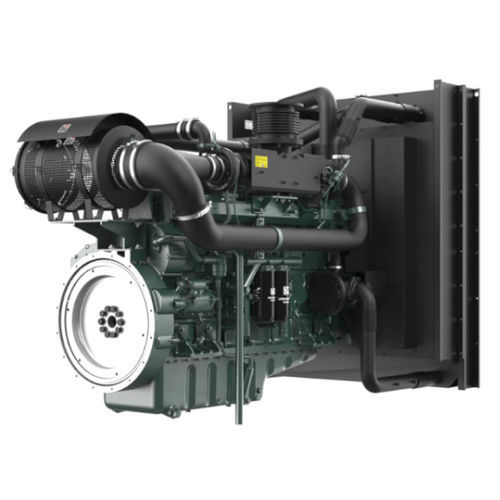

Diesel engine LP625EG1

6-cylinderturbochargedcommon rail

The MARS MAX range engines give power from 460 kW through to 800 kW with speeds of 1500, 1800rpm. The engines are water cooled through either a radiator or water cooled manifold. This robust and versatile engine offers many configurations to suit customer requirements. The engines with emission stage III. The LP625 series are optimized by using double turbo charge system with single air filter construction which can lower the height to only 1659m, maintenance is easier. With Liebherr common rail pump system which enhances the exhaust emission. Excellent performance Similar to Q23 engine design with excellent performance Highly reliable With strong alloy cast iron material for the engine body and that the overhaul period required can surpass 20000 hours. Capable of high attitude performance Can operate below 35 degree C and over 5000m in attitude and not over 30% of derating when over 4500m Applicable to most industry Electronic control with high voltage common rail With Liebherr high voltage common rail pump system that can satisfy the emission standard and dual frequency Easy Maintenance Simple configuration with vertical 6 cylinders having individual cylinder cover and is constructed with open style design, easy for maintenance
