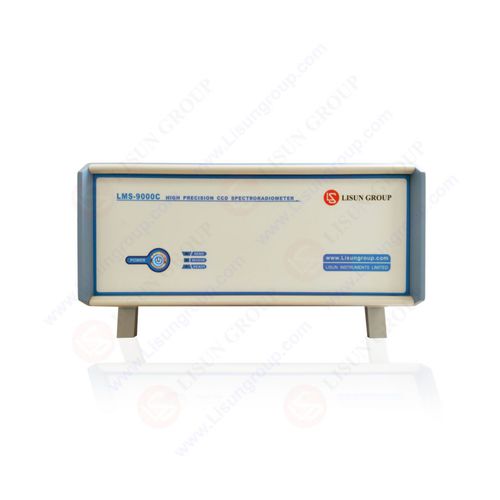

CCD spectroradiometer LMS-9000C

measurement

LMS-9000A/LMS-9000C High Precision CCD Spectroradiometer/spectroradiometry is according to LM-79 clause 9.1. It is designed for any visible optical spectrum distribution analysis, mimicking various light sources in the visible region by feedback control of the radiant power emitted by individual LEDs. This LED optical spectrum analyzer will be used as a transfer standard for photometric, colorimetric and radiometric applications. LMS-9000C can do quick test with high accuracy. It used in scientific lab. It works with integrating sphere and standard lamp as a system: LPCE-2 High Precision Spectroradiometer Integrating Sphere System. Fully meet CIE 177, CIE84, CIE-13.3 , IES LM-79-19, Optical-Engineering-49-3-033602, GB/T-5702, GB/T-7922 , GB/T-20145, GB/T-24824 and IES LM-79-08. Measurement: • Colorimetric: Chromaticity coordinates, CCT, Color Ratio, Peak Wavelength, Half Bandwidth, Dominant Wavelength, Color Purity, CRI, CQS, TM-30 (Rf, Rg), Spectrum Test • Photometric: Luminous Flux, Luminous Efficiency, Radiant Power, EEI, Energy Efficiency Class, Pupil Flux, Pupil Flux Efficiency, Pupil Factor, Cirtopic Flux, Plant Growth Lamp PAR and PPF • Electrical: Voltage, Current, Power, Power Factor, Displacement Factor, Harmonic • LED optical maintenance test: Flux VS time, CCT VS time, CRI VS time, Power VS time, Power Factor VS time, Current VS time and Flux Efficiency VS time. • Spectral Range Wavelength: 350nm~800nm • Spectral Wavelength Accuracy: ±0.5nm(LMS-9000A), ±0.3nm(LMS-9000C), Wavelength Reproducibility: ±0.5nm(LMS-9000A), ±0.1nm(LMS-9000C) • Sample Scanning Steps: ±0.1nm
