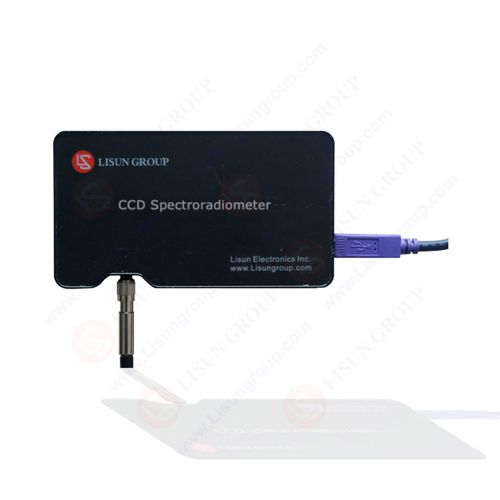

CCD spectroradiometer LMS-7000

high-precision

LMS-7000 spectroradiometer applied with Japanese high-precision CCD detector, which has excellent speed, high stability and high accuracy. • The following wavelength range is with 0.8nm FWHM: • Integration time: 0.5ms to 1,000ms • CCD detector is 3648pix which size is 8μm×200mμm • SNR (Signal to Noise Ratio) is 1000: 1 (Full range). A/D is 16bit • Communicate with PC by USB2.0. The software has a rich re-develop platform which can run on WinXP/7/8/10. • Optical port is SMA905 Fully meet CIE 177, CIE84, CIE-13.3 , IES LM-79, Optical-Engineering-49-3-033602, GB/T-5702, GB/T-7922 , GB/T-20145, GB/T-24824and IES LM 79-08. The LMS-7000 is for LED color & lumen test. It works with integrating sphere and standard lamp as a system: LPCE-3 CCD Spectroradiometer Integrating Sphere Compact System. This system can do the following test. Colorimetric: Chromaticity Coordinate (x, y) and (u, v), Relative Spectral Power Distribution P(λ), Correlated Color Temperature (Tc), Color Rendering Index (Ra, R1 to R15), Color Difference, Dominant Wavelength, Peak Wavelength, Half-bandwidth, Spectral Purity, TM30 (Rf, Rg), CQS Photometric: Luminous Flux (Lumen), Luminous Efficiency, Radiant Power, EEI, PAR, PPF • Spectral Resolution: ±0.2nm • Reproducibility: ±0.5nm • Accuracy of Chromaticity Coordinate (Δx, Δy): ±0.003 • Correlated Color Temperature CCT: 1, 500K ~ 25, 000K, CCT Accuracy:±0.5% • High spectral resolution, high sensitivity and excellent reliability The LMS-7000 can also work with other accessories. It can be used in the following field and area. Please contact LISUN sales dept for the detail solution and spectroradiometer price.
