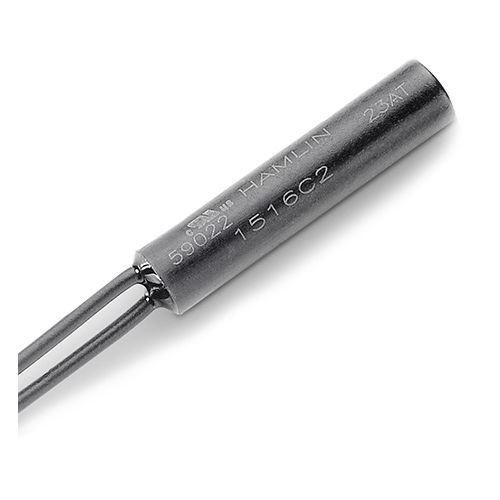

Reed proximity sensor 59022 series

cylindricalwith switching functionIP67

The 59022 Reed Sensor is a small cylindrical reed sensor, 25.4 mm (L) x 5.80 mm (Dia.) (1.00” x 0.228”), with a choice of normally open, normally closed or change-over contacts. It is capable of switching up to 200 Vdc at 10 W. The 59022 Reed Sensor is available with a range of sensitivity and cable length options. It is well suited for use in a wide range of industrial, appliances, or IoT proximity sensing applications. It functions best with the 57022 actuator. Features & Benefits: • Non-contact switching solution for wet & harsh environments • No leakage current in ‘open’ state−ideal for battery-powered IoT applications • Helps implement efficient proximity/access and energy management systems • Compact size and easy installation and effective concealment in many applications • Hermetically sealed, IP67 rated; UL and REACH compliant • Can operate through non-ferrous materials (for example, wood, plastic, or aluminum) • Available in select sensitivities (operating distances) • Standard cable configurations; customization options available • UL Recognized per UL 508 and CSA C22.2 No. 14. Applications: • Security and access control • Factory automation • Process Equipment • Major appliances • Small appliances • Proximity and limit sensing
