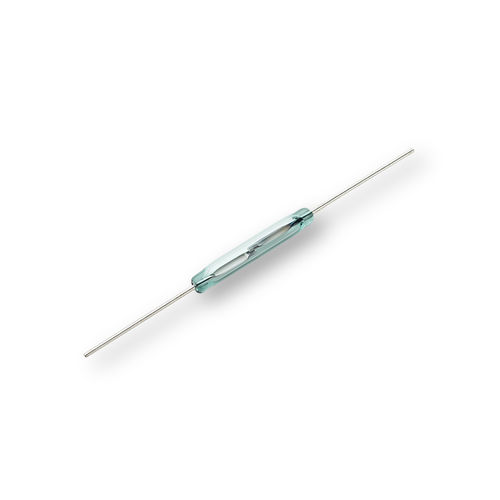

Differential mode reed switch MACD-14 series

for printed circuit boardssubminiature

A sub-miniature, close-differential, normally open switch with a 14.00mm long x 2.28mm diameter (0.551" x 0.090") glass envelope capable of switching 200Vdc at 10W. Available sensitivity range of 10-30 AT. High insulation resistance of 1010 ohms minimum and low contact resistance of less than 100 milliohms. Available in surface mount version (MASM-14). Ideally suited for position, proximity, float position sensing for liquid level, industrial controls, office equipment, home appliance, and telecom applications. Features: • Low close/open hysteresis (close differential) • Normally open switch capable of switching 200Vdc or 0.5A at up to 10 Watts • Available sensitivity range of 10-30 AT Benefits: • Hermetically sealed switch contacts are not affected by and have no effect on their external environment • Zero operating power required for contact closure • Excellent for switching micro-controller logic level loads Applications: • Position sensing • Security • Level sensing • Industrial controls • Office equipment • Home appliances
