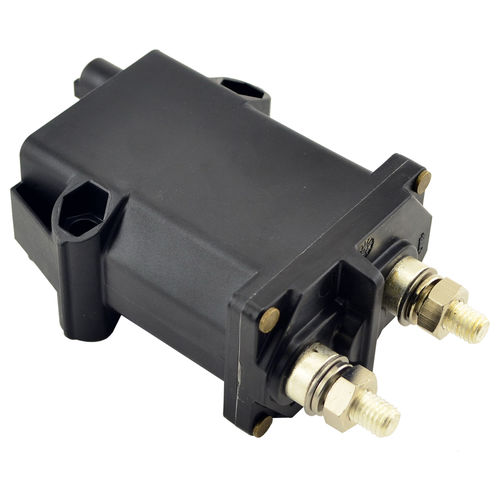

Time delay time relay 08070900

for industrial applicationsfor agricultural machineryfor construction equipment

The 32V 250A Heavy-Duty Latching Time Delay Relay disconnects the battery from the vehicle electrical system with voltage self-recognition. It is rated for 12V/24V with a voltage range of 8.5V to 32V. Thanks to its IP67/X9K dust-tight, waterproof rating, non-volatile memory, low-battery alert system, and thermal protection, this heavy-duty latching time delay relay is ideal for heavy-duty trucks, buses, construction and agricultural equipment, and military applications. The bi-stable remote battery disconnect relay also features immediate switch ON, controlled switch OFF, a programmable delay time from 1 second to 1 hour, and service state managing (service switch OFF and switch ON). Features and Benefits Continuous current rating of 250A, a maximum short circuit rating of 2000A at 5 seconds, and a maximum cranking current of 800A at 30 seconds for use in high-current remote battery disconnect applications Rated for 12V/24V with a maximum rating of 32V Programmable time delay from 1 second to 1 hour Built-in TE Superseal connector 1.5 series Remote command line for normal working (switch) and remote command line for SERVICE/EMERGENCY working (push button) NORMAL/SERVICE mode selection with power down restore Immunity to dirty switches Lamp driving line for error/status signaling UNECE R10 Rev05 compliant
