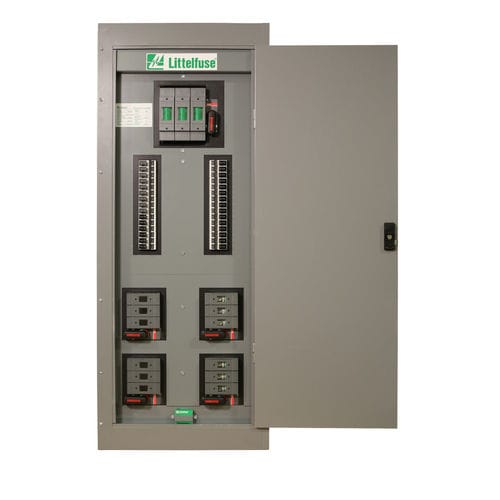

Equipped fuse box LFCP series

surface-mountedmetalpre-assembled

The Littelfuse LFCP series fused coordination panel is a compact fusible and easily configurable pre- engineered panel for circuits requiring selective coordination. Rated up to 600 V ac, this coordination panel saves time and money, plus increases safety, by minimizing system downtime. The advanced LFCP series is available with 200 kA SCCR rating using Class CC and J fuses and can be used on branch and feeder/ service entrance circuits. • Meets NEC selective coordination code requirements • Main lug only or main fused disconnect options available • Class CC fuse holders have built-in open-circuit indication • 35 A–200 A Class J fuses are available with open-circuit indication • Uses standard disconnects and Class CC and J fuses • Feed through lugs available • Neutral options are configurable for service entrance • Ground options can be field isolated • Copper bus standard • Surface mount • Available in standard 20” width enclosure for easy installation • Door-in-door construction standard • NEMA 1 indoor enclosure
