Square fuse 458 seriesfast-actingceramicSMD
Add to favorites
Compare this product
Characteristics
- Configuration
- square
- Type
- fast-acting
- Other characteristics
- ceramic, SMD
- Applications
- electronic equipment, for telecom applications
- Amperage
Min.: 1 A
Max.: 10 A
- VAC
32 V, 48 V
- VDC
63 V, 75 V
- Service temperature
Min.: -55 °C
(-67 °F)Max.: 125 °C
(257 °F)
Description

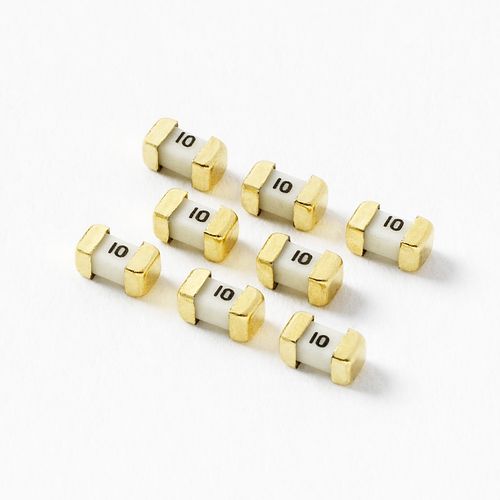

The 458 Series Nano2® Fuse is an ultra-small, square surface mount fuse designed to support a variety of space constrained overcurrent protection applications. Offering a 1206 size footprint, it is the smallest wire-in-air type surface mount fuse offered by Littelfuse.
Features:
• Surface Mount Fuse
• Fully compatible with lead free soldering profiles
• RoHS Compliant
• Halogen Free
• Available in ratings of 1to 10 Amperes
Applications:
• Notebook PC
• LCD backlight inverter
• LCD Panel
• DC/DC converter
• Battery Pack
• Car Navigation System
• Network Equipment
• Telecom Equipment
• Electronic Signage
• Portable Consumer Electronics
