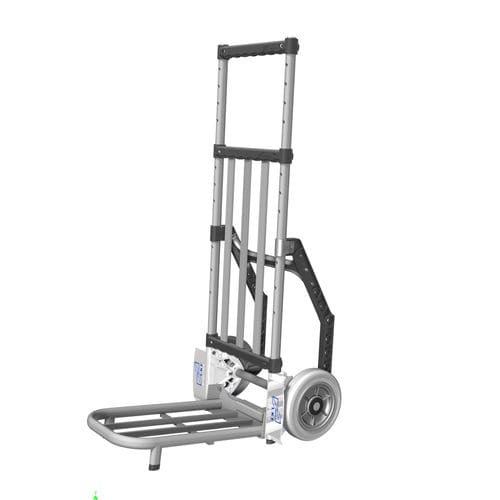

LKE stacking trolleys are manufactured from various material components. The combination of aluminum and plastic guarantees maximum flexibility, stability and safety.
Folding or static, soft-touch solid rubber or pneumatic rubber tires – numerous different versions of the stacking trolleys are complemented by the extensive range of accessories.
The optimum solution for every logistics application.
Technical Data
Outer dimensions:
Length: 725 mm
Width: 515 mm
Height: 1105 mm
Inner dimensions:
Length: 430 mm
Width: 280 mm
Weight:
Weight: 10,0 kg
Track width: approx. 475 mm
Bucket size (LxW): approx. 430x280 mm
Height: approx. 1100 mm
Own weight: approx. 12 kg
Equipment features:
Chassis/ castors:
- 2 wheels, soft-touch tires
- Wheel diameter: 200 mm
Equipment:
- with pipe shovel
- foldable
- made of aluminum
- With folding latch to secure the shovel
- with 1 x plastic cross strut, curved
- with 2 x plastic cross struts, straight
- with 3 aluminum central struts
- with wheel guard
- With perforated grid for holding wire baskets
