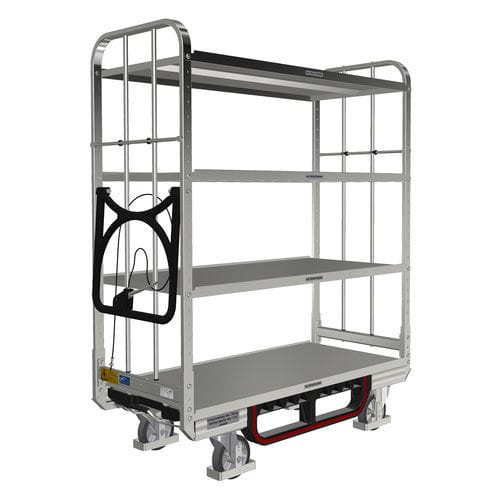

Transport trolley KLT 600 E4 OKD 3ZB100

handlingorder-pickingplastic

The KLT trolley 600 E4 OKD ensures an optimum material flow in the order picking area. Like all LKE products, the KLT trolleys have excellent directional stability and deliver impressive transportation performance in the tightest of spaces. Loading and unloading on both sides of the four levels enables a fast and ergonomic workflow. This model has no coupling and drawbar and can therefore not be driven in combination. This trolley transports KLT boxes in standard size 600. Technical Data Outer dimensions: Length: 1310 mm Width: 590 mm Height: 1645 mm Inner dimensions: Length: 1205 mm Width: 572 mm Weight: Weight: 83,0 kg External dimensions (LxWxH): approx. 1310x590x1645 mm 4 levels consisting of (usable area / load capacity): - 3 x intermediate shelf with side shelves Backsplash 1205x572mm / 100kg - Plastic base 1207x572 mm / 300 kg max. Total trolley load capacity: 500 kg Equipment features: Chassis: - without clutch/drawbar system - Prepared for retrofitting coupling and drawbar Chassis/ castors: - 2 swivel castors with solid rubber tread - 2 fixed castors with solid rubber tread - 2 lockable castors - Wheel diameter: 160 mm - Running surface hardness: 65° Shore A - Overrun protection on all castors Accessories: - with pull handle incl. Deceleration aid - with 50 mm hole pattern in the end panels - with forklift guide suitable for forklift tines with max. Width of 580 mm
