Polishing finishing machine 120 - 170 rpm
centrifugalfor bars

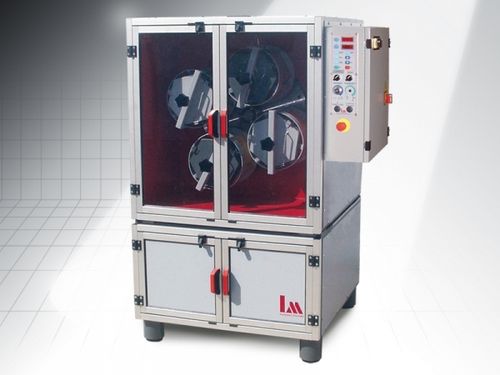

Polishing finishing machine - 120 - 170 rpm - LM srl - centrifugal / for bars
Polishing finishing machine - 120 - 170 rpm - LM srl - centrifugal / for bars
Polishing finishing machine - 120 - 170 rpm - LM srl - centrifugal / for bars - image - 2
Polishing finishing machine - 120 - 170 rpm - LM srl - centrifugal / for bars - image - 3
Polishing finishing machine - 120 - 170 rpm - LM srl - centrifugal / for bars - image - 4
Add to favorites
Compare this product


Characteristics

Associated function
polishing
Type
centrifugal
Applications
for bars
Power

Max.: 5 ch
(5 hp)

Min.: 2 ch
(2 hp)

Rotational speed

Max.: 170 rpm
(1,068.14 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

The centrifuge tumbling machine with 3/6/20 lt. model is used in smoothing, polishing and finishing medium-sized pieces problems. The processing costs are lessen due to its high esecution speed. To have a constant reliability over time, the machine features a sturdy painted metal frame. The machine consist of an automatic and manual rotation selector. On the 20 lt. model, the forced ventilation is standard. The tumbling barrel uses anti abrasive polyurethane materials. The planetary speed averages from 75 rpm and 130 rpm on 20 lt. and 6 lt. models respectively. The rotation inverter and electronic rpm adjustment can be operated automatically. It shows the number of planetary revolutions selected. The machine consist of a timer and gear inversion speed. The device complies with the C.E.I. standards. The electrical swing hoist is available on 20 lt. models upon request.
