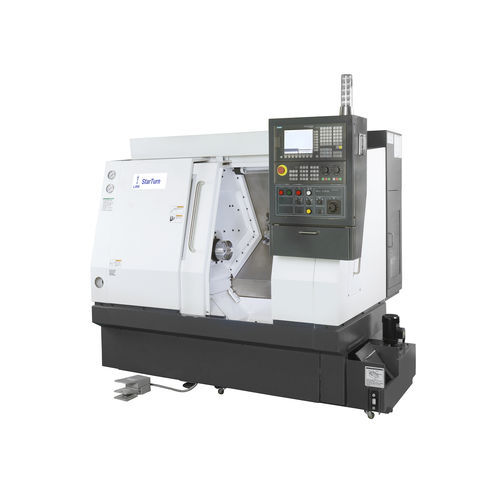

CNC turning center STARTURN2-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Diameter
480 mm
(18.9 in)- Spindle speed
6,000 rpm
(37,699.112 rad.min-1)- Maximum part length
200 mm
(8 in)- Bar capacity
32 mm
(1 in)- Axe X
105 mm
(4 in)- Axe Z
215 mm
(8 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
20,000 mm/min
(13 in/s)- Overall lenght
2,056 mm
(81 in)- Overall width
1,515 mm
(60 in)- Overall height
1,652 mm
(65 in)- Weight
1,900 kg
(4,189 lb)
Description
CAPACITY
Chuck Size - mm - 135
Max. Turning Diameter - mm - 200
Admit Between Centres - mm - -
SPINDLE
Spindle nose - type - Flat (Dia: 110)
Hole through Spindle - mm - 36
FEED
Inclination of Carriage - deg - 30°to Horizontal Plane
TURRET CENTER
No. of Stations - nos. - 8
Tool Shank Size - mm - 20 x 20
Turret Indexing - Type - Hydraulic
