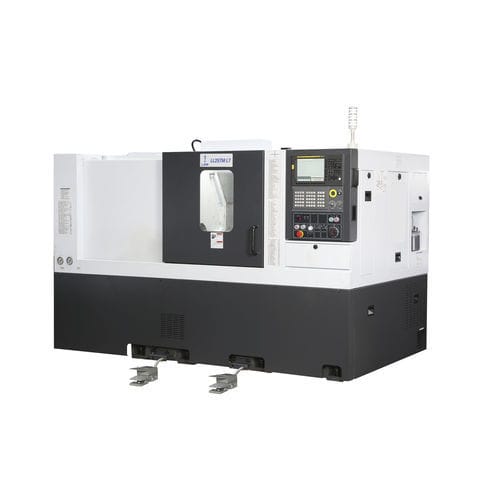

CNC turning-milling center LL25TM L7horizontal2-axisspindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Type
- horizontal
- Number of axes
- 2-axis
- Structure
- spindle
- Diameter
510 mm
(20.08 in)- X travel
220 mm
(8.66 in)- Y travel
600 mm
(23.62 in)
Description
CAPACITY
Chuck Size - mm - 254
Max. Turning Diameter - mm - 350
Max.Turning Length - mm - 522
Admit Between Centres - mm - 800
SPINDLE
Spindle nose - type - A2-6
Hole through Spindle - mm - 77
Spindle Speed - rpm - 4000
Spindle motor power (Cont./15min) - kw - 16.5 / 11
FEED
Inclination of Carriage - deg - 300 to Horizontal Plane
Rapid traverse (X/Z) - Axes - m/min - 30 / 30
TURRET
No. of Stations - Nos - 12
Tool Shank Size - mm - 25 x 25
Maximum Boring Bar Diameter - mm - 40
Turret Indexing - Type - Servo
Turret Indexing Time - Sec - 2.5
TAILSTOCK
Quill dia. - mm - 75
Quill stroke - mm - 100
Quill taper - mm - MT-4
CNC SYSTEM
Controller - Type - Fanuc / Siemens
MACHINE SIZE
L x B x H - mm - 2915 x 1700 x 2020
Weight - kg - 4500
