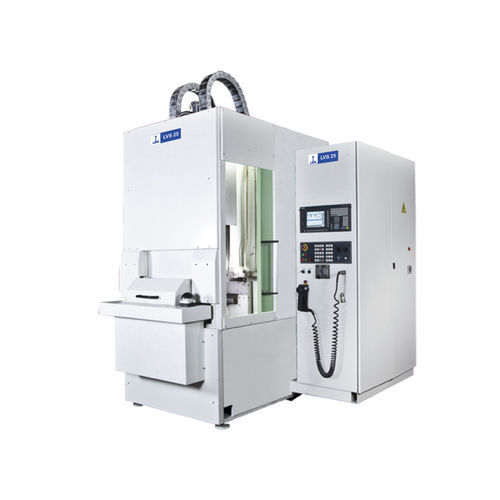

CNC turning center LVS 25vertical2-axisA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Spindle mount
- A2-6
- Number of tool stations
- 12 tools
- Diameter
180 mm
(7.09 in)- Spindle speed
3,500 rpm
(21,991.149 rad.min-1)- Maximum part length
235 mm
(9 in)- Bar capacity
40 mm
(2 in)- Axe X
305 mm
(12 in)- Axe Z
300 mm
(12 in)- Rapids on X
24,000 mm/min
(16 in/s)- Rapids on Z
24,000 mm/min
(16 in/s)- Nominal power
15 kW, 18.5 kW
(20.4 hp, 25.2 hp)- Overall lenght
4,650 mm
(183 in)- Overall width
1,815 mm
(71 in)- Overall height
2,860 mm
(113 in)- Weight
7,500 kg
(16,535 lb)
Description
CAPACITY
Max.Turning Length - mm - 145
Chuck size - mm - 250
Turning diameter without swing loader - mm - 250
Turning length without swing loader - mm - 235
Maximum Turret Swing Diameter - mm - 720
SPINDLE
Spindle Construction - type - Integral Motor
TURRET
No. of Stations - nos. - 12
Tool Shank - mm - BMT 55
Turret Indexing - Type - Hydraulic
Turret Indexing Time - sec - 1.0
CNC SYSTEM
Controller - Type - Fanuc
