CNC turning center SMART ULTRA
2-axis

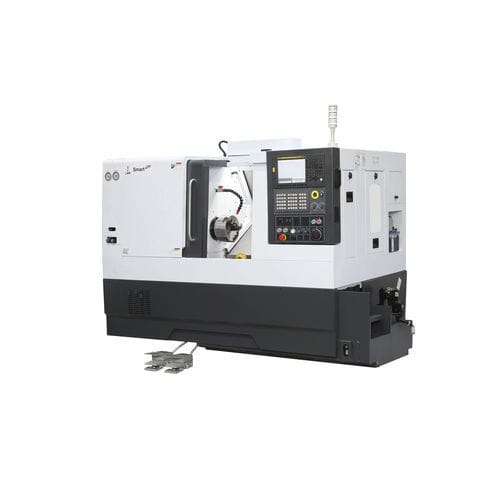

CNC turning center - SMART ULTRA - LMW - 2-axis
CNC turning center - SMART ULTRA - LMW - 2-axis
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
2-axis
Diameter

460 mm
(18.11 in)

Spindle speed

3,500 rpm, 4,500 rpm
(21,991.149 rad.min-1, 28,274.334 rad.min-1)

Maximum part length

325 mm
(13 in)

Bar capacity

40 mm
(2 in)

Axe X

155 mm
(6 in)

Axe Z

420 mm
(17 in)

Rapids on X

30,000 mm/min
(20 in/s)

Rapids on Z

30,000 mm/min
(20 in/s)

Nominal power

5.5 kW, 7.5 kW, 8.3 kW
(7.5 hp, 10.2 hp, 11.3 hp)

Overall lenght

2,300 mm
(91 in)

Overall width

1,470 mm
(58 in)

Overall height

1,910 mm
(75 in)

Weight

2,300 kg
(5,071 lb)

Description

CAPACITY Chuck Size - mm - 200 (165) Max. Turning Diameter - mm - 290 Admit between centres - mm - 420 SPINDLE Spindle nose - type - Flat (Dia: 140 mm) Hole through Spindle - mm - 54 FEED Inclination of Carriage - deg - 30o to Horizontal Plane TURRET No. of Stations - nos. - 8 Tool Shank Size - mm - 25 x 25 Turret Indexing - Type - Hydraulic Turret Indexing Time - sec - Less than 1.0 TAILSTOCK Quill Diameter - mm - 65 Quill stroke - mm - 80 Quill taper - Type - MT-4 CNC SYSTEM Controller - Type - Fanuc / Siemens / Mitsubishi
