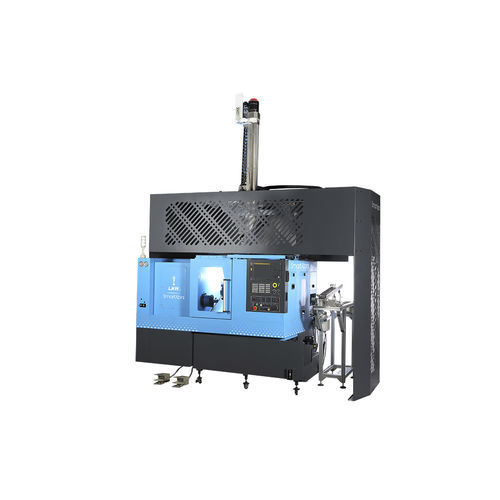

CNC turning center SMARTXPRS2-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Diameter
460 mm
(18.11 in)- Spindle speed
6,000 rpm
(37,699.112 rad.min-1)- Maximum part length
330 mm
(13 in)- Bar capacity
40 mm
(2 in)- Axe X
95 mm
(4 in)- Axe Z
375 mm
(15 in)- Nominal power
5.5 kW, 7.5 kW
(7.5 hp, 10.2 hp)- Overall lenght
2,620 mm
(103 in)- Overall width
1,475 mm
(58 in)- Overall height
3,350 mm
(132 in)- Weight
2,500 kg
(5,512 lb)
Description
CAPACITY
Chuck Size - mm - 169
Max. Turning Diameter - mm - 170
Admit Between Centres - mm - 400
SPINDLE
Spindle nose - type - Flat (∅140)
Hole through Spindle - mm - ∅ 35
FEED SYSTEM
Inclination of Carriage - deg - 30o to Horizontal Plane
TURRET
No. of Stations - nos. - 8
Tool Shank Size - mm - 25 x 25
Turret Indexing - Type - Servo
TAILSTOCK
Quill Diameter - mm - 65
Quill stroke - mm - 80
Quill taper - - - MT-4
CNC SYSTEM
Controller - Type - Fanuc
