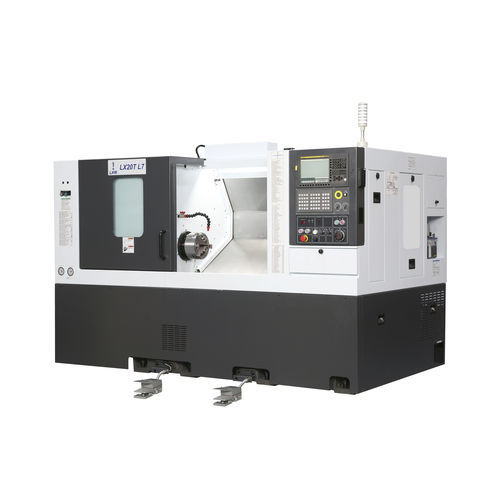

CNC turning center LX20T L72-axisA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle mount
- A2-6
- Diameter
510 mm
(20.08 in)- Spindle speed
3,000 rpm, 3,500 rpm
(18,849.556 rad.min-1, 21,991.149 rad.min-1)- Maximum part length
687 mm
(27 in)- Bar capacity
40 mm
(2 in)- Axe X
185 mm
(7 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Nominal power
7 kW, 7.5 kW, 10.5 kW, 11 kW
(9.5 hp, 10.2 hp, 14.3 hp, 15 hp)- Overall lenght
2,705 mm
(106 in)- Overall width
1,650 mm
(65 in)- Overall height
1,920 mm
(76 in)- Weight
3,600 kg
(7,937 lb)
Description
CAPACITY
Chuck dia. Size - mm - 210
Max. Turning Diameter - mm - 320
Admit between Centres - mm - 830*
SPINDLE
Hole through Spindle - Mm - 61
FEED
Inclination of Carriage - deg - 30o to Horizontal Plane
TURRET
No. of Stations - Nos - 8
Tool Shank Size - mm - 25 x 25
Turret Indexing - Type - Bi - directional
Turret Indexing Time - Sec - 1.0
TAILSTOCK
Quill dia. - mm - 75
Quill stroke - mm - 100
Quill taper - type - MT-4
CNC SYSTEM
Controller - type - Fanuc / Siemens / Mitsubishi
