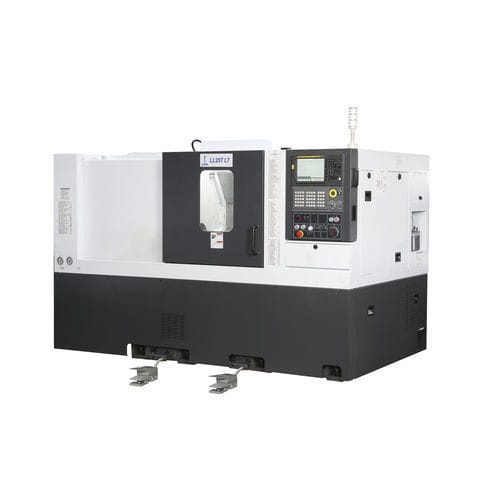

CNC turning center LL25T L72-axisA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle mount
- A2-6
- Diameter
510 mm
(20.08 in)- Spindle speed
3,500 rpm
(21,991.149 rad.min-1)- Maximum part length
670 mm
(26 in)- Bar capacity
40 mm
(2 in)- Axe X
185 mm
(7 in)- Axe Z
750 mm
(30 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
36,000 mm/min
(24 in/s)- Nominal power
11 kW, 15 kW
(15 hp, 20.4 hp)- Overall lenght
2,705 mm
(106 in)- Overall width
1,650 mm
(65 in)- Overall height
1,920 mm
(76 in)- Weight
3,800 kg
(8,378 lb)
Description
CAPACITY
Chuck dia. Max - mm - 254
Max. Turning Diameter - mm - 320
Max.Turning Length - mm - 670
SPINDLE
Hole through Spindle - Mm - 77
FEED
Cross travel X-axis - mm - 185
TURRET
No. of Stations - nos. - 8
Tool Shank Size - mm - 25 x 25
Turret Indexing - Type - Bi-directional
Turret Indexing Time - Sec - less than 1
TAILSTOCK
Quill dia. - mm - 85
Quill stroke - mm - 100
Quill taper - type - MT-5
CNC SYSTEM
Controller - Type - Fanuc / Siemens*
