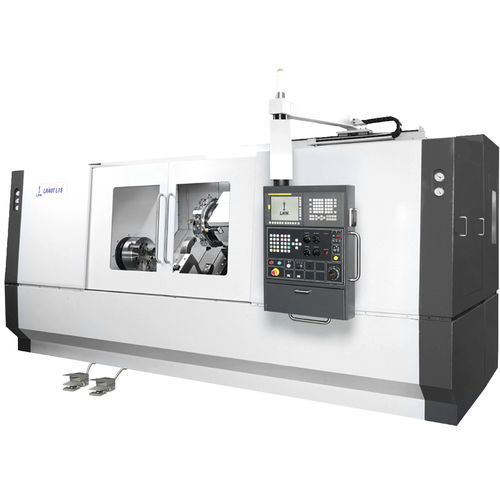

CNC turning center LR40T L152-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Diameter
760 mm
(29.92 in)- Spindle speed
1,900 rpm
(11,938.052 rad.min-1)- Maximum part length
1,500 mm
(59 in)- Bar capacity
60 mm
(2 in)- Axe X
330 mm
(13 in)- Axe Z
1,620 mm
(64 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
24,000 mm/min
(16 in/s)- Nominal power
18.5 kW, 22 kW
(25.2 hp, 29.9 hp)- Overall lenght
4,950 mm
(195 in)- Overall width
2,475 mm
(97 in)- Overall height
2,500 mm
(98 in)- Weight
11,000 kg
(24,251 lb)
Description
CAPACITY
Chuck dia. Max - mm - 381
Max. Turning Diameter - mm - 600
Admit Between Centres - mm - 1640
SPINDLE
Spindle nose - type - A2-11
Hole through Spindle - Mm - 113
FEED
Inclination of Carriage - deg - 45o to Horizontal Plane
TURRET
No. of Stations - nos - 8
Tool Shank Size - mm - 32 x 32
Indexing time (per station) - sec - 1.5
Turret Indexing - Type - Hydraulic
Turret Indexing Time - Sec - 1.5
TAILSTOCK
Quill Diameter - mm - 120
Quill Stroke - mm - 120
Quill Taper. - Type - MT-6
CNC SYSTEM
Controller - Type - Fanuc / Siemens
