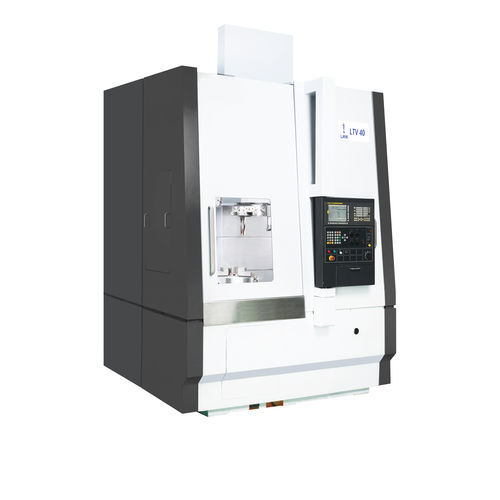

CNC turning center LTV 40vertical2-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Diameter
790 mm
(31.1 in)- Spindle speed
1,800 rpm
(11,309.734 rad.min-1)- Maximum part length
600 mm
(24 in)- Bar capacity
50 mm
(2 in)- Axe X
370 mm
(15 in)- Axe Z
700 mm
(28 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
20,000 mm/min
(13 in/s)- Nominal power
18.5 kW, 22 kW
(25.2 hp, 29.9 hp)- Overall lenght
2,162 mm
(85 in)- Overall width
2,245 mm
(88 in)- Overall height
3,065 mm
(121 in)- Weight
7,000 kg
(15,432 lb)
Description
CAPACITY
Chuck dia. Max - inch - 457
Max. Turning Diameter - mm - 600
SPINDLE
Spindle nose - type - A2-11
Hole through Spindle - mm - 100
TURRET
No. of Stations - nos. - 8
Tool Shank Size - mm - 25 x 25
Turret Indexing - Type - Hydraulic
Turret Indexing Time - Sec - 1.5
CNC SYSTEM
Controller - Type - Fanuc
