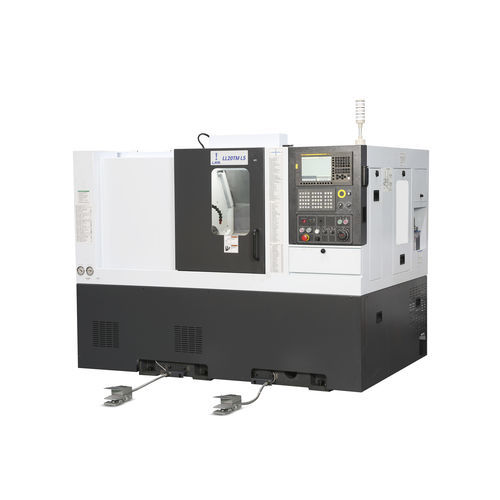

CNC turning-milling center LL20TM L5horizontal2-axisspindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Type
- horizontal
- Number of axes
- 2-axis
- Structure
- spindle
- Diameter
510 mm
(20.08 in)- X travel
160 mm
(6.3 in)- Y travel
425 mm
(16.73 in)
Description
CAPACITY
Chuck dia. Max - mm - 210
Max. Turning Diameter - mm - 260
Max.Turning Length - mm - 352
Admit Between Centres - mm - 610
SPINDLE
Spindle nose - type - A2-6
Hole through Spindle - Mm - 61
Maximum Spindle.speed - rpm - 4000
Spindle motorpower (cont./15min) - Kw - 13.5 / 9
FEED
Inclination of Carriage - mm - 300 to Horizontal Plane
Rapid traverse (X/Z) - Axes - m/min - 30 / 30
TURRET
No. of Stations - Nos - 12
Tool Shank Size - mm - 20 x 20
Maximum Boring Bar Diameter - mm - 32
Turret Indexing - Type - Servo
Turret Indexing Time - Sec - 2.5
TAILSTOCK
Quill Diameter - mm - 75
Quill Stroke - mm - 100
Quill Taper - mm - MT-4
CNC SYSTEM
CNC System - Type - Fanuc/Siemens
MACHINE SIZE
Front x Side x Height - mm - 2255 x 1650 x 1920
Machine Weight (approx.) - mm - 4000
