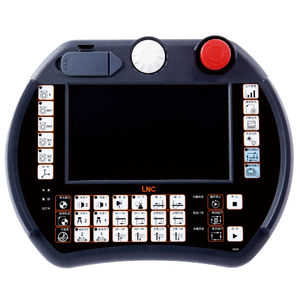

Touch screen robot controller RW8800

Ethernet communication port

RW8800 Series Welding Robot Controller, which apply to welding industry. The controller includes welding art bag to reach the diversity requirements such as dot correction, arc welding, spot welding, and welding bead tracking, and it supplies diversity welding machine’s integration interface for further. Hardware Storage: SD Card (1G) Monitor: 7"TFT LCD Touch Screen Operation Panel: 40 buttons Emergency Stop: 1 Safety Switch: 2-stage switch (Standard) / 3-stage switch (Optional) Communication Cord: 8m (Standard) / 5,6 m (Optional) Knob: For use with software functions Communication Interface USB: USB HOST(2.0) EtherNET: 10BASE-T/ 100BASE-TX CIO: Expandable with LNC serial communication I/O cards, max: 128 input points/ 128 output points. Servo Interface D1: M-II D2: RTEX D3: EtherCAT D5: PULSE Power Supply System Power: AC 100V/240V 50/60Hz I/O Power: DC 24V(above 4A)
