EtherCAT vibration sensor SVI series

industrialcompact

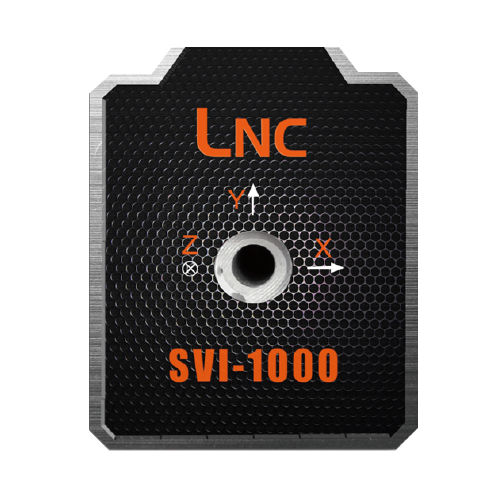

LNC's SVI-1000 smart vibration sensor is currently the most cost-effective product available on the market; its compact design effectively saves space, and the sensor is capable of providing precise and sensitive vibration signal measurements. When combined with Advantech-LNC's ETS-1000 EtherCAT communication module, the EtherCAT communication protocol is supported to offer high expandability and flexible integration options, which will facilitate the user's development of smart machinery features. • Compact Design SVI-1000 adopts a lock-fitting design to allow the device to be fixed in place securely; it saves the space required during installation even if there is only a limited space available. The SVI-1000 is suitable for various types of equipment; it can be installed on machine tools, industrial robots, and other automated equipment. • High Sensitivity, High Precision Vibration Signal Detection SVI-1000's sampling rate is 1660HZ, with a measurable vibration frequency of 830Hz and a measurable acceleration range of ±16G; it is the most cost-effective smart vibration sensor currently available on the precision machinery market. SVI-2000 provides vibration frequency detection with a sampling frequency of 6600Hz, and users can choose according to high-frequency application requirements. Specification Measuring Range: ±16 g Sensitivity: 0.488 mg/LSB Temperature Offset: 0.01 %/℃ Zero Offset: ±40 mg Noise Density: 130 μg/√Hz RMS Noise: 3 mg(RMS) Max Tolerated G Value: 10000 g Sampling Frequency: 1660Hz Servo Protocol: COM Port Shipping Standard: Eliminate offset after locking. Each axis in a static state is maintained within ±30 mg (25°C)
