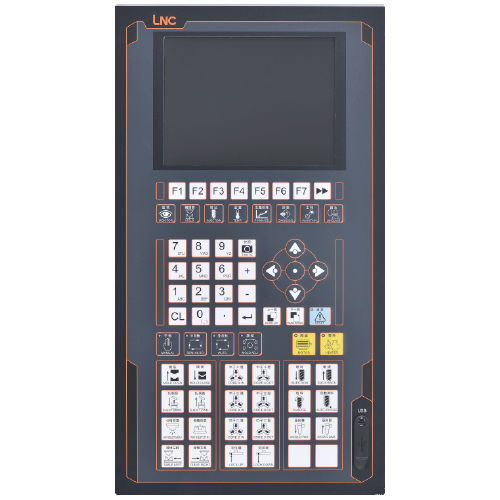

Closed-loop control system IN series

for injection molding machineshigh-performance

• 8” TFT LCD • 10.4” TFT LCD (Optional touch screen) • 15” TFT Touch screen • Support EtherCAT communication protocol • High-speed, high-precision, and wiring-saving • Dual-core high-performance CPU • Operation buttons can be connected externally • Two-color or multi-color injection is possible • Support various peripheral automation equipment • Servo valve fully closed loop control • Complete production statistics and analysis data • Enhanced durability and fanless design • High-quality QUI-Designer for easy operation • Support USB • Simple wiring / Convenient to expand IO Hardware Monitor: 15” Touch Screen Axial Port (Pulse): 2 Axial Port (EtherCAT): 0/6 Storage: 1G CF Card Input Point: 24 (Expansion16) Output Point: 28 (Expansion16) Relay Output Points: 5 Voltage Input: 8 (Expansion 16 max.) Current Output: 2 Temperature Input (Expansion): 9+1 (Ambient Temperature) Front USB Port: Yes Front Network Port: No Expansion Input Point: 2048 Expansion Output Point: 2048 CIO Input Point: 20 (Max.160) CIO Output Point: 16 (Max.128) Data Transmission Ethernet: Yes RS232: Yes RS422: Yes RS485: Yes USB: Yes Software Number of Cores: 3 Accumulator Control: Yes Servo Valve Close-loop Control: Yes Electrical Servo Closed-loop Control: Yes Injection Compression Function: Yes
