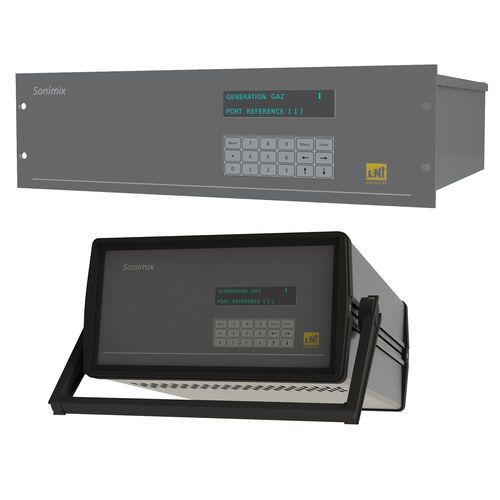

Air analyzer calibrator Sx 6000 C1

for gas analyzers

The multipoint multigas calibrator SONIMIX 6000C1 is an instrument designed to calibrate manually or by remote control up to 5 gas monitors installed in an Air pollution monitoring station, such as SO2, HC or BTX, CO, NOx and O3. With the optional Ozone generator and GPT circuitry it is possible to verify the coherence of NO, NO2 and O3 analysers, and to determine the converter’s efficiency of the NOx monitors. The interface allows to Configure the calibrator and to perform the manual operations of calibrations and GPT necessary after the maintenance process on the analysers. Equipped with a binary gas mixer, based on high precision mass flow controllers and mechanical pressure regulators the SONIMIX 6000C1 can generate accurate dilution to low ppb level. Options : – Permeation oven of different sizes and material (up to 3 permeation oven per device), with a specific oven able to contain up to 6 BTEX permeation tubes. – Ozone generator and GPT circuits. Permeation Mass Flow Controller technology Remote control Ergonomic with LCD display Main applications Air pollution monitoring
