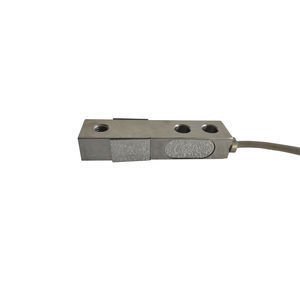

Shear beam load cell LP7110J beam typestrain gaugedigital
Add to favorites
Compare this product
Characteristics
- Type
- shear beam
- Form
- beam type
- Technology
- strain gauge
- Output signal
- analog, digital
- Applications
- weighing
- Other characteristics
- steel, stainless steel, precision
- Rated load
Max.: 10 t
(11.02 us ton)Min.: 0.25 t
(0.28 us ton)- Length
Max.: 222.3 cm
(87.52 in)Min.: 130 cm
(51.181 in)130 cm
(51.181 in)- Height
Max.: 50.8 mm
(2 in)Min.: 31.8 mm
(1.25 in)31.8 mm
(1.25 in)
Description
LP7110J shear beam load cell, using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. A high precision and high reliability weighing load cell is manufactured by fine process flow and high precision measuring equipment.
Process flow：Patch (pre-cured, post-cured )→Bridge wire→ temperature compensation→Initial test→Sealing→Strain-hole laser welding→Initial test→ Standardized compensation→Retest→Sealing（Cleaning glue）→ Packing and storage
