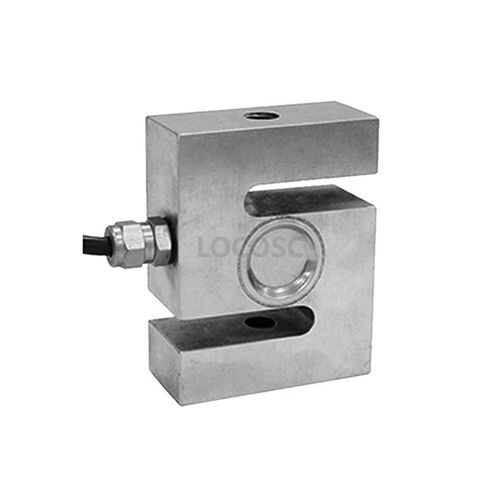

Tension load cell LP7141B
S-beamstrain gaugeweighing

tension load cell
tension load cell
Add to favorites
Compare this product


Characteristics

Type
tension
Form
S-beam
Technology
strain gauge
Applications
weighing
Other characteristics
steel, stainless steel, precision
Rated load

Max.: 5,000 kg
(11,023.11 lb)

Min.: 500 kg
(1,102.31 lb)

Description

LP7141B S type load cell, using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. A high precision and high reliability weighing load cell is manufactured by fine process flow and high precision measuring equipment. Process flow:Patch (pre-cured, post-cured )→Bridge wire→ temperature compensation→Initial test→Sealing→Strain-hole laser welding→Initial test→ Standardized compensation→Retest→Sealing(Cleaning glue)→ Packing and storage
