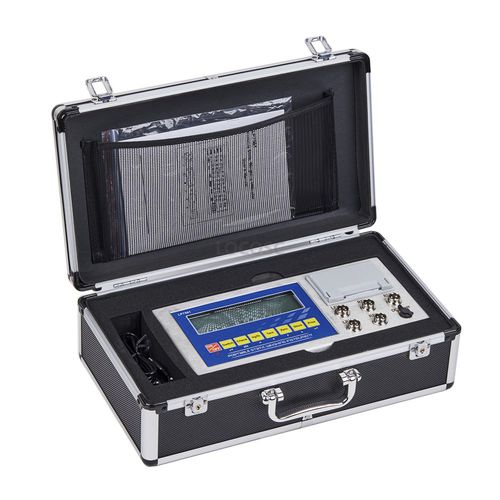

LCD display weight indicator LP7561

benchtopRS-232ZigBee

Type:Weighing indicator Power Supply: AC 110V/220V (AC±10%) Display Type: LCD Rated Load: 100000kg Accuracy:1kg, 3000e Item Name:Stainless Steel Axle Indicator LP7 Housing:Stainless Steel Display:6 digits 20mm LED or LCD Input Sensitivity:0.5μV/D Zero tracking:0.5 d/s Excitation:5VDC Operating Temperature:-10~+40 ℃ (14℉~104℉) input voltage:-30~30mV Dimension:330mm x 187mm x 75mm Display 6-digit 25mm LCD with backlight Key 8 Power supply AC 110V~240V 50/60Hz, 6V4Ah lead acid battery Battery enduring life 30 hours Communication Zigbee 2.4GHz Distance 80m Transmitter LP7562W/LP7562V (6 at most) Operating temperature -10ºC ~ +40ºC Input sensitivity 0.5μV/D Load cell excitation DC5V, maximum connect with 24 pcs of 350Ω load cell Zero calibration -30mV ~ 30mV AD internal resolution 1/2000000 AD external resolution 1/15000 AD coversion rate 60 times/sec Span calibration Full digital calibration Dimension 200mm* 75mm* 185mm Weight 1.8kg Features: 1. high resolution axle indicator; 2. it can connect with 1/2/3/4 weighing pads; 3. 6-wire or 4-wire loadcell support, maxim 24pcs of load cells; 4. serial port RS232; 5. PC command mode; 6. stainless steel bracket.
