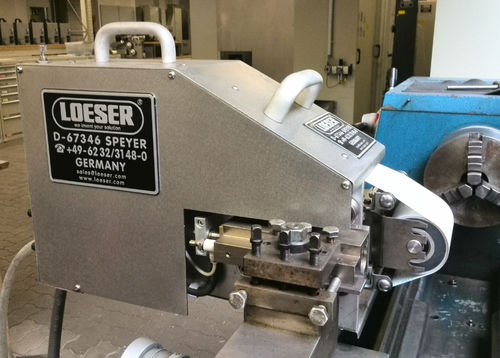

Surfacing super-finishing machine Type SF 104

finishingautomatic

for finest finishing of cylindrical workpieces •for the operation with lapping and microfinishing films up to 100 mm film width •can be mounted in the steel holder of the lathe •Pressure of contact roll pneumatically and precisely adjustable •Cross oscillation infinitely variable from 0 – 2.500 strokes per minute •stroke of oscillation 3 mm standard •automatic self-centering of the film •air pressure 6 bar, pressure max. 20 kp •film advance variable from 1 - 26 cm/min. •maximum main voltage 230 Volt Accessories: 1 contact roll, complete with axle and bearing hardness can be chosen: 60, 80 or 95° Shore Device completely ready for use, including electrical equipment, without coolant device Options: a)Attachment arm with two contact rolls for double working surface b)Attachment arm with contct belt for larger belt contact arc c) Attachment arm, elongated c)can also be deliverd with every belt width smaler than 100 mm Ultra fine surface finishing of Ra 0,002 - Ra 0,06 µm - LOESER offers Superfinish attachements and machines. Honing with superfine abrasive and oscillation up to 3000 cycles per minute.
