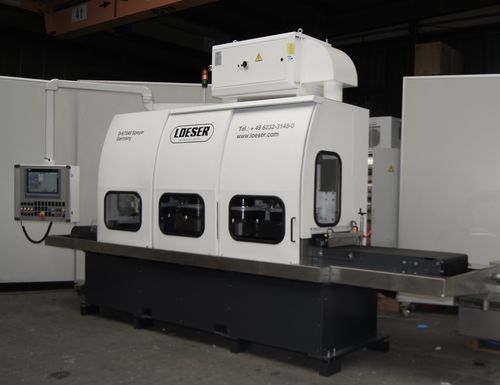

Edge rounding deburring machine FB 384

finishinggrindingbrushing

Workpiece width and any length: 150mm , 300 mm Special up to 500 mm width Workpiece hight 80 mm optional more Planetary deburring head with 4 brushes: Independant rotation and direction of the brushes and the brushing head. Frequency controlled rotations for planet and brush Workpiece transport by special belt conveyor Magnet table for increased part holding force Demagnitizing table at the exit of the machine Integration in automatic processing lines with conveyors to and away from the machine. Optional return conveyors with part turning 180 to brush both surfaces before the part is unloaded Sensor driven planetary head with wear compensation of the brush Load measuring sensors for motor monitoring Size recognition of parts optional Perfect planetary deburring and precision edge rounding. Planetary deburring is an edge perfection. Flakoting , Schartigkeit, or other words are used . Our deburring solutions match the customer requirements for perfect edge rounding and surface conditioning. According to customer requested process parameters such as production rate and tolerance requirements. We design by use of our modular Loeser concept your machine solution.
