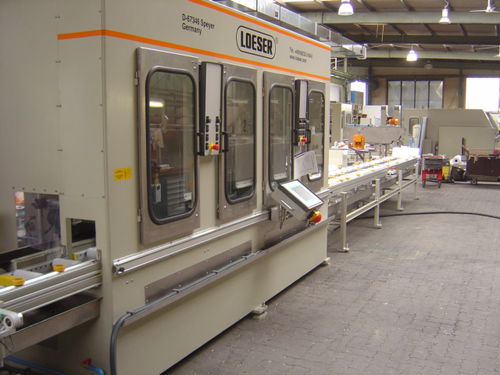

Surface grinding machine FS 387

workpiecePLC-controlled

Special design machine consisting of a wet area where the grinding is done and a totally isolated dry area where the mechanisms, electrics, adjustments and sensors are located. This new design maximizes the longevity of the machine and minimizes service and cleaning. Workpiece dimension: width 300 mm x height 150 mm and any length Special design for high production in steel works and stainless production Belt grinding main drive 11 kW / 15 HP Pressure controlled grinding head for constant stock removal Belt tension by adjustable pneumatic cylinder Belt dimension 150 mm wide by 2500 mm length Adjustable belt oscillation Automatic wear compensation of belts and wheels Automatic size control and height adjustment of the heads Workpiece transport by frequency driven belt conveyor Infeed and Outfeed by roller guide Optional handling system with return conveyor for automated operation Buffing stations with angle adjustment Buffing pressure controlled with wear compensation Wax system with solid or liquid compound feeder LOESER is a global technology leader with more than a thousand Flat Belt Grinding systems in operation worldwide. LOESER offers time proven solutions for low to high volume production on simple or complex belt grinding/polishing applications. Our modular design concept offers systems from high stock removal grinding to fine finishing depending on customers specific requirements.
