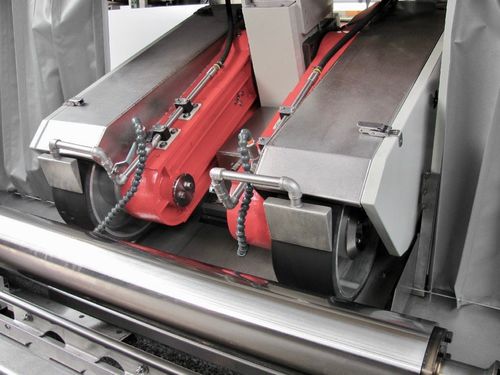

Polishing finishing machine HSD

grindinglinearindustrial

Center type grinding and polishing system and High Speed Dechrome system Workpiece diameter up to 500 mm / circumverence 1500 mm Workpiece length 3000 to 8000 mm Workpiece weightup to 2500 metric kg Workpiece clamping motorized with programmable clamping force Workpiece rotation frequency contolled Workpiece rotation in heavy duty operation servo controlled Belt grinding heads 7,5 kW up to 11 kW for heavy stock removal and high speed grinding Belt tension pressure controlled Belt dimension 150 mm wide bz 2500 mm long Optional turning device Optional corner and side grinding head Highly efficient grinding operation for large and heavy products which are difficult to clamp between centres or can not be treated centreless. The parts rest on driven rolls which give precise rotation during the grinding process without the time consuming clamping process.
