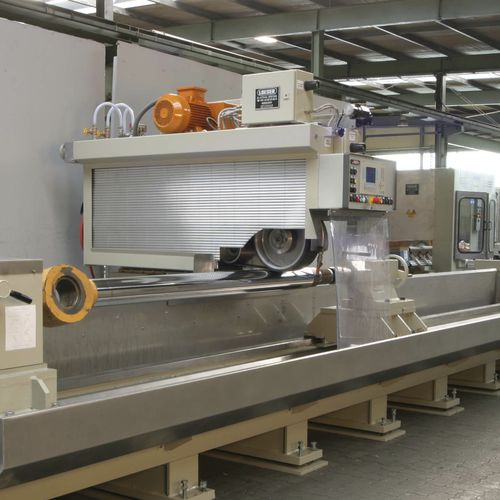

Flat grinding machine ZSP 377

for tubesPLC-controlled

Workpiece diameter up to 800 mm optional up to 1000 mm Workpiece lenght up to 16000 mm Workpiece weight up to 10000 kg Workpiece clamping between centers by spindle and tail stock Workpiece rotation by heavy duty servo drive Belt grinding heads 11 kW - 22 kW for heavy stock removal Grinding head pressure controlled in single or double head design Free belt grinding system with additional 3 roll system Belt tension pressure controlled Belt dimension 150 x 3500 mm Grinding and finishing pressure pneumatic adjusted Siemens controls Wet grinding system with paper filter system Additional workpiece support rolls for thin and long parts Optional process control system Highly efficient grinding operation for large and heavy products which are difficult to clamp between centres or can not be treated centreless. The parts rest on driven rolls which give precise rotation during the grinding process without the time consuming clamping process.
