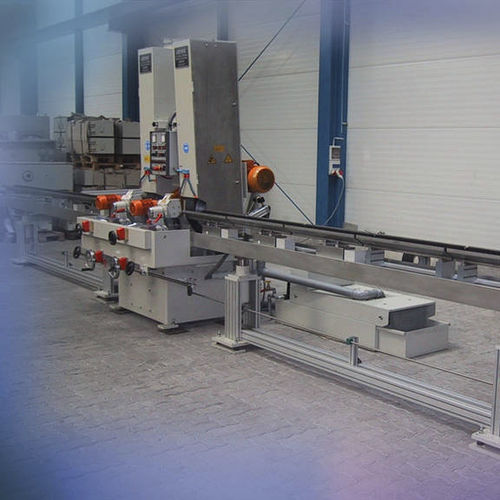

Centerless grinding machine RPS 374 Low Cost

for tubesautomaticband

Diameter Range 10 - 80 mm Special Version 1,3 mm up to 150 mm Belt dimension 150 mm wide x 2500 mm or 3500 mm length Workpiece transport system by V-Conveyor with vibration transport Workpiece transport system by roller guide with pinch roll system for secure and precise transport which eliminates a risk of spinning tubes Patented pressure controlled grinding and polsihing heads Angle adjustable buffing heads with automatic wear compensation Applications: Surface improvements prior to plating, descaling, deburring, superfinishing, finishing for surface checking by ultrasonic, removing surface defects, decorative grinding and polishing, microfinish surface, satin finishing, chrome finishing, improving corrosion resistance, removing of coatings Over thousands sucessful delivered machines worldwide demonstrates LOESER'S dedication and perserverance to earning the No. 1 position in this technology. Centerless belt grinding is first choice for high production and efficiency. The modular design of these machines allows finetuning for customer needs. Optimized solutions with high production reliability. For finishing of cylindrical products with different diameters or parts with a rod eye than can't be processed centreless. The machines are specifically designed to customer requirements by use of our high quality modular design. Highly efficient grinding operation for large and heavy products which are difficult to clamp between centres or can not be treated centreless. The parts rest on driven rolls which give precise rotation during the grinding process without the time consuming clamping process.
