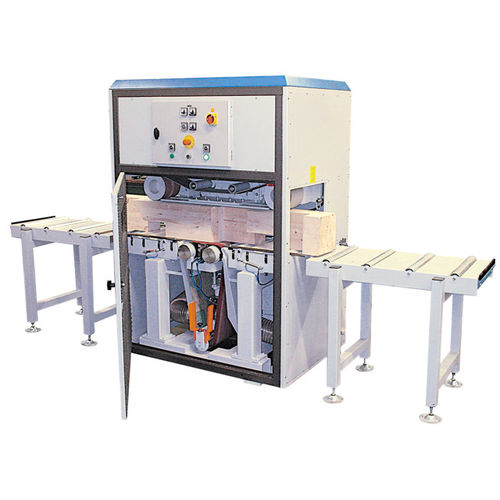

Belt sanding machine HBS 400 ub

for woodhigh-speed

The HBS 400 ub is the speediest solution on offer from Loewer and sands the workpiece from below. The sensor-controlled conveyor belt, located on top, lowers pneumatically onto the workpiece independent of its thickness. Therefore, a speedy processing is possible even with frequently-varying workpiece thicknesses. The reverse function, standard on this machine, allows the workpiece to be sanded in both directions, in a forward and backward motion. This can be selected either using the automatic function or selecting the appropriate touch-button. One operator can sand a 10 m long beam in only four minutes, from three sides. We call that efficent! HBS 400 ub Quick as a flash Speedy setting of thickness pneumatically Sands in forward and backward direction using Reverse function (PLC controls) Constant height of throughfeed making it possible to use with roller conveyors HBS-sanding pad with tolerance adjustment of up to 4 mm Sands beams with cut-outs or gaps Maximum sanding width 400 mm Sanding thickness 15- 400 mm
