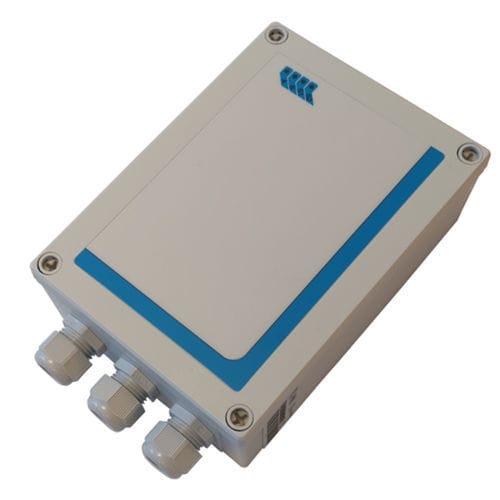

Communication gateway NX-900

securityindustrialIoT

The RTCU NX-900 is the most advanced industrial IoT Gateway product available on the market today. The device is based on the NX32L (NX32 for Linux) architecture, which embraces many new technologies and, at the same time, maintains full backward compatibility, which ensures already implemented and tested NX32 applications can execute with no changes. The RTCU NX-900 shares the form-factor, power and I/O architecture of the popular RTCU AX9 turbo and the power and advanced NX32L features from the RTCU NX-400! The RTCU NX-900 is designed to meet the ever-increasing challenges on security, in that it offers full TLS on all major protocols and includes a hardened protected execution environment with dual-boot and automatic fallback and recovery. The RTCU NX-900 device is an industrial-grade device that is designed from the ground up for professional M2M / IoT applications with its strong on-board I/O capabilities and multiple communication interfaces such as Worldwide cellular LTE, WLAN, GNSS, Bluetooth Classic / Low-Energy, Ethernet, dual RS232, dual RS485, and 1-Wire. The on-board I/O system can be expanded almost indefinitely and completely transparently by adding Modbus I/O modules. Technical Highlights: Platform: Based on the RTCU M2M Platform. NX32L (NX32 for Linux) execution architecture. RTCU IDE development tool. Operates under a full and highly optimized Linux variant. Open and extendable with the RTCU Platform SDK. Hardware Core: Cortex-A5 32-bit ARM processor operating at 500 Mhz. Hardware floating point and DSP instructions. 128 MByte LP-DDR RAM.
