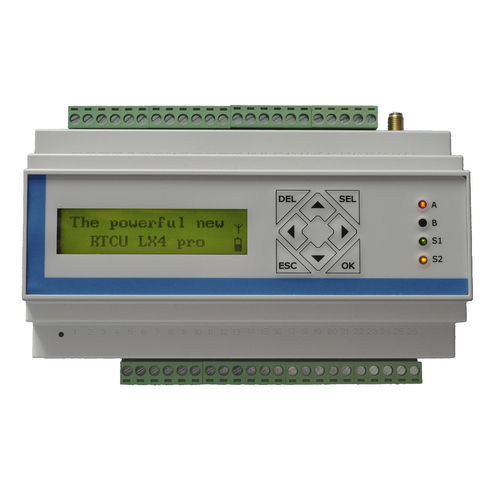

Communication gateway LX4 pro

securityindustrialIoT

The RTCU LX4 pro is a powerful successor to the RTCU DX4i pro with significant improvements in features, capacity, power, and security. The RTCU LX4 pro is based on the latest LX hardware architecture, offering an unprecedented balance between price and performance. The RTCU LX4 pro is positioned for a broad range of professional industrial Internet of Things applications. With onboard M-Bus / Wireless M-Bus and pulse counting inputs (S0), it is a perfect component in advanced Energy Management applications The device is based on the NX32L (NX32 for Linux) architecture, which embraces many new technologies and at the same time maintains full backward compatibility, which ensures already implemented and tested NX32 applications can execute without changes. The RTCU LX4 pro is designed to meet the ever-increasing challenges on security, by offering full TLS on all major protocols and includes a hardened protected execution environment with dual-boot and automatic fallback and recovery. The RTCU LX4 pro device is designed from the ground up for professional M2M / IIoT applications with strong onboard I/O capabilities and multiple communication interfaces such as a Worldwide LTE Cat.4 Cellular Engine, Wired and Wireless M-Bus, LAN, RS232, RS485, and 1-Wire. The RTCU LX4 pro rests on the RTCU M2M Platform, that brings all the necessary tools together to develop, implement and maintain today’s sophisticated M2M/IIoT applications. Technical Highlights: Platform: Based on the RTCU M2M Platform. NX32L (NX32 for Linux) execution architecture. RTCU IDE development tool. Operates under a full and highly optimized Linux variant.
