GLONASS antenna RT-O-LTE-GN1AB GPSGALILEOLTE
Add to favorites
Compare this product
Characteristics
- Network
- LTE, GPS, GLONASS, GALILEO, 3G UMTS, GSM
- Type
- external
- Other characteristics
- linear polarized
- Frequency
Min.: 698 MHz
Max.: 2,690 MHz
- Gain
Min.: 0 dB
Max.: 2 dB
Description

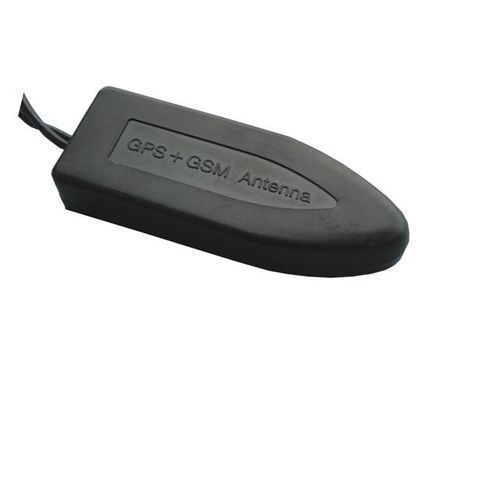

Supports the frequencies of GNSS and Worldwide LTE/UMTS/GSM making this antenna suitable for use with the RTCU MX2 turbo LTE.
The slim form-factor of this antenna makes it ideal for installation in difficult places. The dimensions are only: 96mm x 36mm x 15mm.
It has a SMB female connector for the GNSS and a SMA male connector for the cellular interface. Comes with 3 meter cable and can be connected directly to the MX2 series.
Must be mounted with the adhesive side facing reverse the sky - towards the installation surface.
