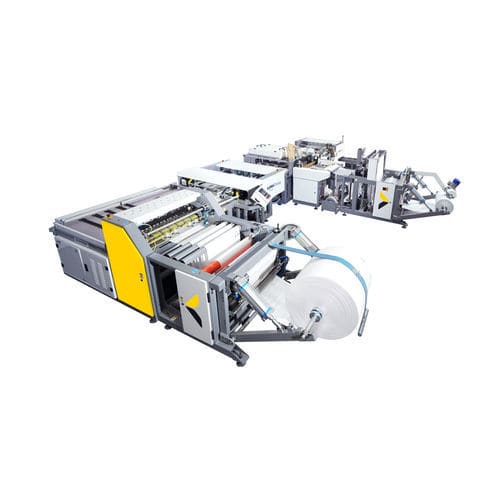

Bag conversion line bcs-liner

bcs-liner is the latest addition our range of conversion machines. It automates and replaces the manual process of inserting in the woven bags. These Liner bags are used in packaging of hygroscopic materials such as sugar, salt, chemicals & minerals. Width of Unwinding Fabric Roll - 480 - 700 for Liner insertion 400 – 850 in BCS mode Width of Unwinding Liner Roll - 500 – 720 mm Diameter of Fabric Roll - 1300 mm Internal Diameter of Core - 70 - 115 mm** Replacement of Fabric Roll - Pneumatic System Cutting Length - 600 – 1150 for Liner insertion 500 – 1225 in BCS mode Cutting Length (Liner) - 620 - 1225 mm Cutting Length Accuracy - ± 1 mm for Unprinted Fabric Bottom Folding Width - 25 mm (Option - 22 mm) Stitching Type - Double Stitch Range - 4 - 9 mm for Bottom Stitch Liner thickness - 20 - 80µ*** Production Speed - 20 bags / min* for Liner insertion 45 bags / min* in BCS mode Dimensions (L x W x H) - 9.25 x 7.16 x 1.54 m
