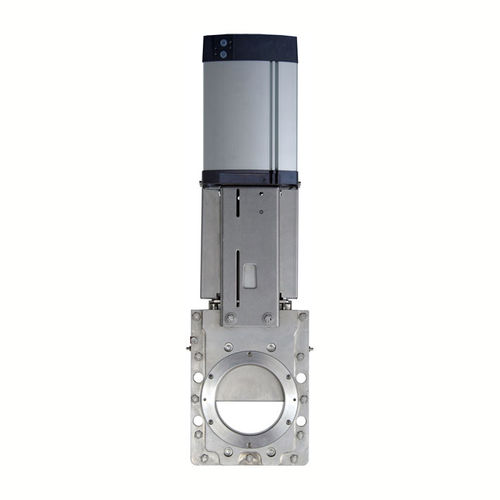

Slide valve RQS/NAQ serieswith handwheelpneumatically-operatedshut-off
Add to favorites
Compare this product
Characteristics
- Type
- slide
- Operation
- with handwheel, pneumatically-operated
- Function
- shut-off
- Media
- for water
- Body
- flange, stainless steel
- Applications
- for industrial applications, for the chemical industry
- Associated function
- discharge
- Other characteristics
- compact
- DN
Max.: 500 mm
(19.685 in)Min.: 100 mm
(3.937 in)- Pressure
2 bar, 4 bar, 8 bar
(29 psi, 58 psi, 116 psi)- Temperature
80 °C, 120 °C, 200 °C
(176 °F, 248 °F, 392 °F)
Description
with round inlet and square outlet
ensures reliable shut-off in reject area due to the smaller inlet (round) and larger outlet (square) and protected guides
available in various seal types and surface treating of the wearing parts
areas of application:
cleaner plants, heavy weight rejects/ sandtraps/ heavy weight rejects discharge in general, pulpers
nominal diameters:DN 100 – 500 (4 – 20")
material:Type RQS: stainless steel (1.4571 / 1.4571),
Type NAQ: cast iron (En-GJL-250 / 1.4571)
flanges:DIN EN 1092-1, ANSI B 16.5 class 150, LOHSE-standard
accessories:intermediate piece (square to round)
