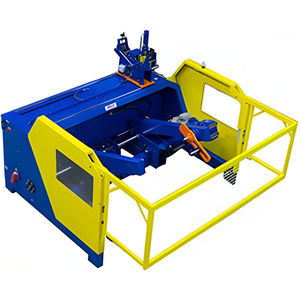

Heavy-duty winder TRP-6

cablewireautomatic

Automatic take-up machine to fill reels and make coils with flexible or semirigid electrical cable. With a robust, compact and agile design to reduce displacement times, with quick, accurate mechanisms which reduce preparation times Regarding TRG winding type machines, this version can exceed the 5 tons limitations from the TRG, by using vertical telescopic arms. This machine is fully recommended for manufacturers and heavy industrial use. All the machine movements are made electrically or hydraulically, without any effort on behalf of the operator. Range of use: • Cables and similar from 1 to 100 mm de Ø. • Wire rope Ø 1 to 55 mm. • Wooden drums from 700 hasta 2 200 mm Ø. • Maximum weight 6 000 kg Placement for take-up The reel is placed between the arms, which move hydraulically to grasp it and elevate it. These movements are carried out through buttons located on the front of the machine, allowing us to see the positioning is correct, or through the touchscreen on the main control panel Features • Sturdy frame construction. • Hydraulic lifting and lowering • Automatic opening and closing of the center sleeves. • Protection cages automatically opens and closes with safety • Measurement and controls with a touch screen 7" C • ERP cut orders transferred through network connection • Gentle start, infinitely adjustable, frequency controlled drive. • Safety cage with automatic switch-off following CE securities directive.
