Cable drum unwinder PDV140
coilcablerobust

Cable drum unwinder - PDV140 - LOIMEX - coil / cable / robust
Cable drum unwinder - PDV140 - LOIMEX - coil / cable / robust
Add to favorites
Compare this product


Characteristics

Type
cable drum, coil, cable
Other characteristics
robust
Roll diameter

Max.: 1,400 mm
(55.12 in)

Min.: 1,000 mm
(39.37 in)

Description

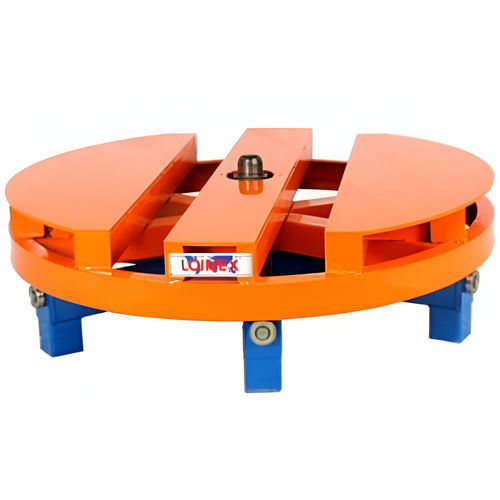

Loimex's PDV140 Unwinding Devices are used for horizontally oriented unwinding reels, measuring N10 (Ø 1.000 mm) to N25 (Ø 2.500 mm). The machines showcase total weights of 4.000 kg. They are designed and manufactured complete with integrated tube profiles. Weights of the structures are divided into 6 legs, each equipped with miniature bearings that support cable unwinding processes. At the plates' centers are centering cones that house the reels. PDV-DD( optional accesory ) Rubber tire wheel motor attached to the unwinding plate that allows you to rotate the plate on low speed, to de-coiling or winding the wire in the drum easily. Pedal-powered with speed ramps for smooth start and stop. It has a selector to select the direction of rotation of the winder. Emergency stop with safety relays to accomplish CE strict safety measures. Maximun weight kg. : 2.500
