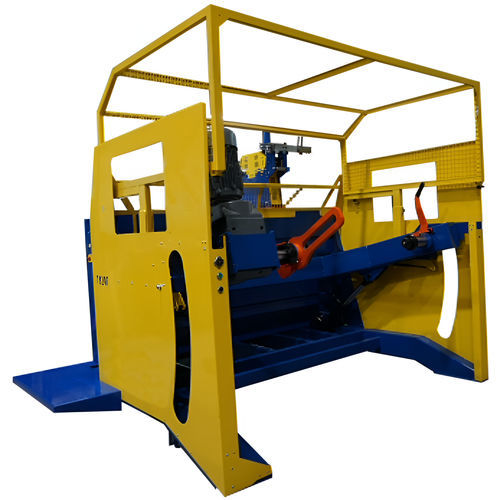

This combined reeling-coiling machine allows one single operator to measure, rewind and cut cable from the reel racks warehouse or from a reel-carrying jacks to an empty reel, and also to make coils with an additional coiling device.
Each machine is built according to the European Norm of Security for Machinery and is marked with the CE label
Range of application
• Electrical cables, unsheathed or sheathed, ropes, etc. from 1 to 100 mm Ø.
• Steel wire ropes Ø 1 to 55 mm.
• Reels from 700 to 2000 mm Ø.
• Maximum weight 3000 / 4000 Kg
Placement for take-up
The wooden reel or drum is situated inside the machine, between the two axles with cones which will support it. One of the axles is operated manually and is blocked by a ratchet lever which is easy to use and very fast. The other axle is hydraulically actuated by a pad located in the cage protection of the machine, perfectly situated to be able to move the reel while the shaft moves
Features
• Built in a sturdy steel frame, with optional steering wheels.
• The lifting and lowering of the reel by hydraulic means
• Direct transmission to the axis
• Coiler device can be attached directly to the motor drive arm.
• Hydraulic drive shaft for the drive arm
• Right axis ratchet, for an useful drum width of 520 mm
• Measurement and controls with touch screen 5.7" C
• Slow ramp and adjustable speed regulator with the use of a frequency inverter.
• Safety cage with automatic switch lock following the CE securities directive
