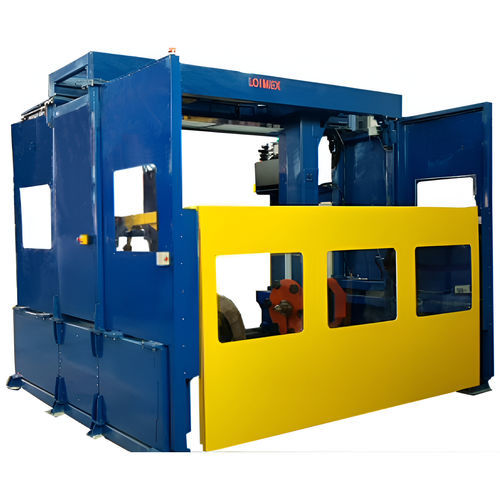

Cable drum unwinder DVP10

cablemotorizedautomatic

Automatic gantry pay-off machine to unwind a drum of cable with safety while having a tension to the cable through a motor driven torque control. The unwinding machine has an electronic adjustable hydraulic brake which controls the start, speed and stop of the reel when unwinding. With a plug-in connector to connect to any winding machine, will allow you to work as standalone machine or connected with the DVP pay-off in sync mode. Range of use: • Wooden drums from 1.400 to 2.800 mm Ø. • Maximum weight 10.000 Kg Placement for take-up The reel is placed between the arms, which move hydraulically to grasp it and elevate it. These movements are carried out through buttons located on the front of the machine, allowing us to see the positioning is correct, or through the touchscreen on the main control panel Features • Sturdy frame construction. • Hydraulic lifting and lowering • Manual brake control tensor, optionally motorized or torque controlled • Automatically opening and closing of the center sleeves. • Safety cage with automatic switch-off following CE securities directive.
