Manual coiler D11H/P

cablecoilwith length measuring device

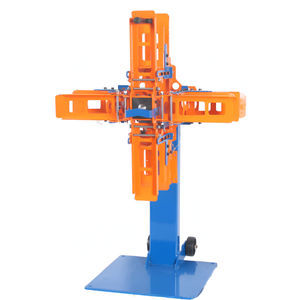

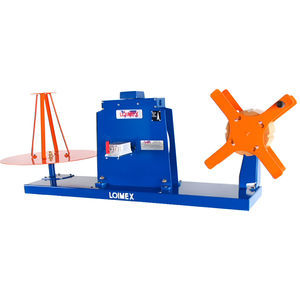

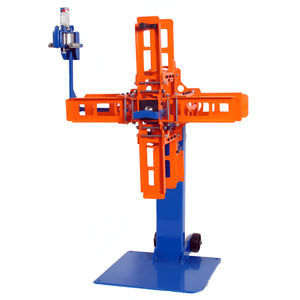

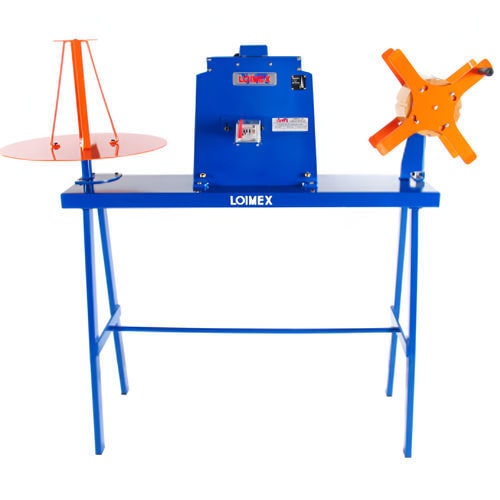

The machine is used to measure and coil cables and other flexible materials. Use For flexible cables and cords from 5 to 16 mm Ø. Maximum capacity of unwinding and winding are 30 and 15 kg respectively. Base frame Steel base frame of 1,060x250 which comprises a measuring device H11, and an unwinding device A20 and the winding device R20. MEASURING DEVICE H11 Housing and pressure stirrup made out of light alloy. Steel measuring wheel, 20cm in circumference, knurled surface. Roller counter with continuous indication of the meassuring results, with 4 mm high white numerals on black background. Measuring range 999,99 meters. Zeroing via pressure lever. UNWINDING DEVICE A20 Support plate 500 mm Ø. Cone 60:200 mm Ø, 350 mm high, with removeable locking plate. Base plate with 4 fixing holes with support base. WINDING DEVICE R20 Bearing block with wooden cone of 60:200 mm Ø and 350 mm high, with four grooves for binding the cable coil. Front locking cross can be easily removed. Maximum capacity 15 kg. Options You can order the D11h with feet, use reference D11h/p when ordering. - Cable diameter : 5 a 16 mm - Counter capacity : 999,99 metros - Accuracy approx. : +-0,5% - Steel cable : opcional - Dimensions : 1.450x500x1.250 mm
