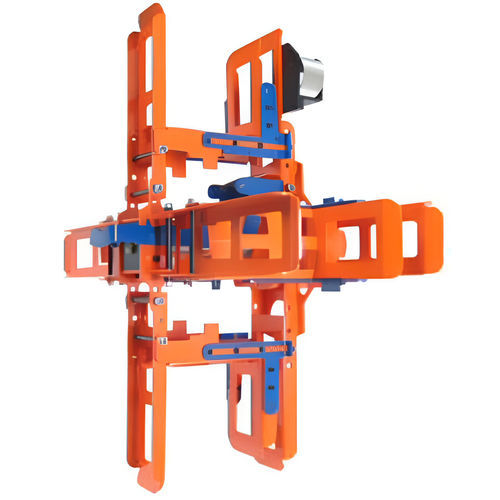

Manual coiler RT9.25

cablecoil

This coiler device enables to wind coils of cable without using a wooden drum, build with a front and rear cross piece with four blades and a core with four sectors. Made to easily tie the coil and to remove the coil of cable effortless Range of application For making coils of cable without using drums Features • To fill a coil of cable of a maximum 900 mm de Ø • Core of 390/460/530 mm de Ø • Useful inner width 250 mm • Four separators to regulate the inner width, mm: 250-200-150-100 • Front crosspiece being articulated for the quick extraction of the cable • Clamp to attach the beginning of the cable • Device designed to be attached to a TR machine • Coiling device has a maximum capacity of 150 Kg
