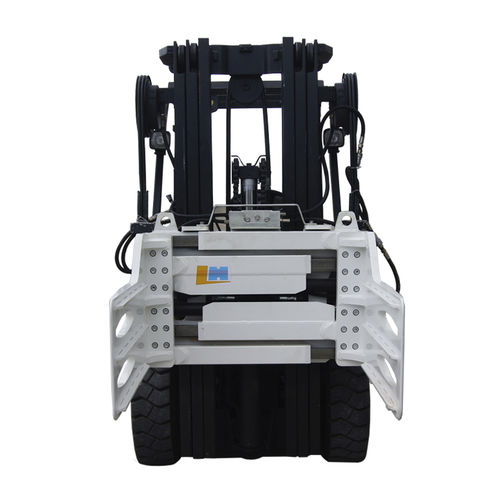

Bale clamp RBC -B/C F-series

Enhanced bale clamp is designed specially for the operation of waste paper bale handling and stacking cases which are in the rough and overload conditions. All the structure components are strengthed and cylinder protections are applied. As well as the standard bale clamp, lateral sliding arm for smooth clamping and sideshifting function are applied for high efficienty, safety, durability and economy___Commonly equipped in industries as paper mill, material recycling, railway transporta-tion, logistic warehouse, and ports. - - Capacity: 3000Kg/3200Kg - - Mounting Class: II/III/IV - - Opening Range: 460mm – 2630mm - - Arm Height: 460mm - - Arm Length: 900mm – 1600mm - - Frame Width: 1130mm – 1820mm - - Arm Thickness: 75mm/85mm/90mm/95mm - - Overall Height: 808mm/890mm - - Vertical Center of Gravity: 237mm – 266mm - - Weight: 720Kg – 1240Kg - - Effective Thickness: 140mm/162mm - - Horizontal Center of Gravity: 235mm – 377mm Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 - 180 Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits required 3. Opening range refers to distance between arm tips 4. Dimension E refers to operation space required for arm 5. With sideshifting * Further technical details are available upon request
